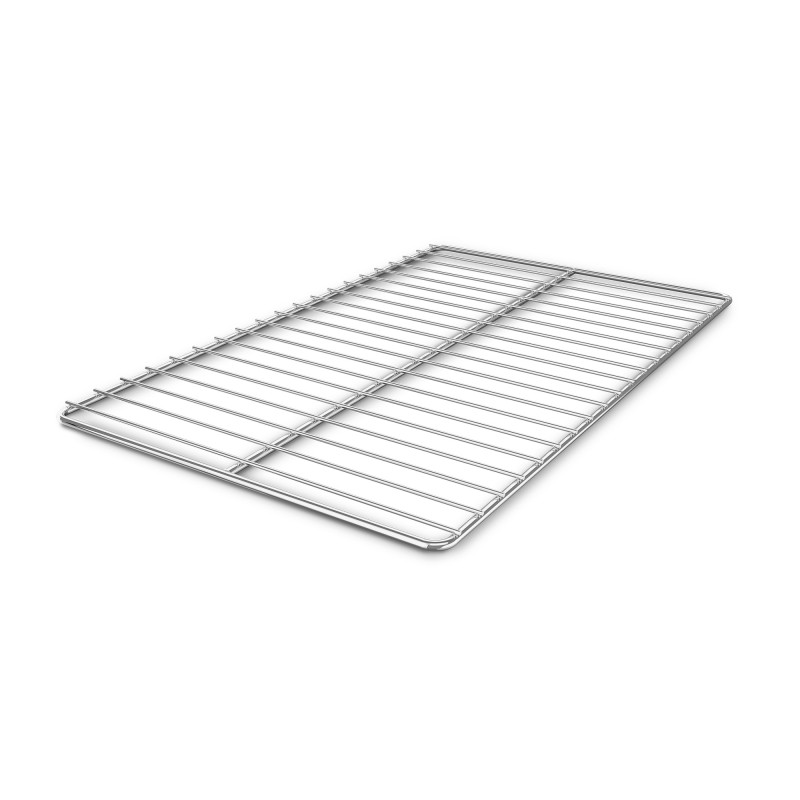

GN-grid 1/1 Type A

01139029
GN grating for insertion e.g. into Gastronorm trolleys, banquet trolleys and food transport trolleys for storage and transport.Grating in hygienic design, made of high-quality, electro-polished stainless steel round material with 20 ø 0.12'' (3.0 mm) wires running at distances of 1.0'' (26 mm) parallel to the shorts sides of the grating.
Key facts
  • 530 × 325 × 6.0 mm

  • Number of lengthwise wires 20

  • Lengthwise wire thickness: 3.0 mm

Prices visible after registration. Register now
Ready for shipping in 1–3 days for destination countries within EU, other countries on request. Intermediate sale reserved.
Grating in hygienic design, made of high-quality, electro-polished stainless steel round material... more

Product information

Grating in hygienic design, made of high-quality, electro-polished stainless steel round material with 20 ø 0.12'' (3.0 mm) wires running at distances of 1.0'' (26 mm) parallel to the shorts sides of the grating.

Technical information

Frame and strut wire thickness: 6.0 mm
Lengthwise wire thickness: 3.0 mm
Number of lengthwise wires 20
Spacing of lengthwise wires: 26 mm
Load bearing capacity: 5.0 kg
Weight: 0.84 kg
Width: 530 mm
Depth: 325 mm
Height: 9 mm
