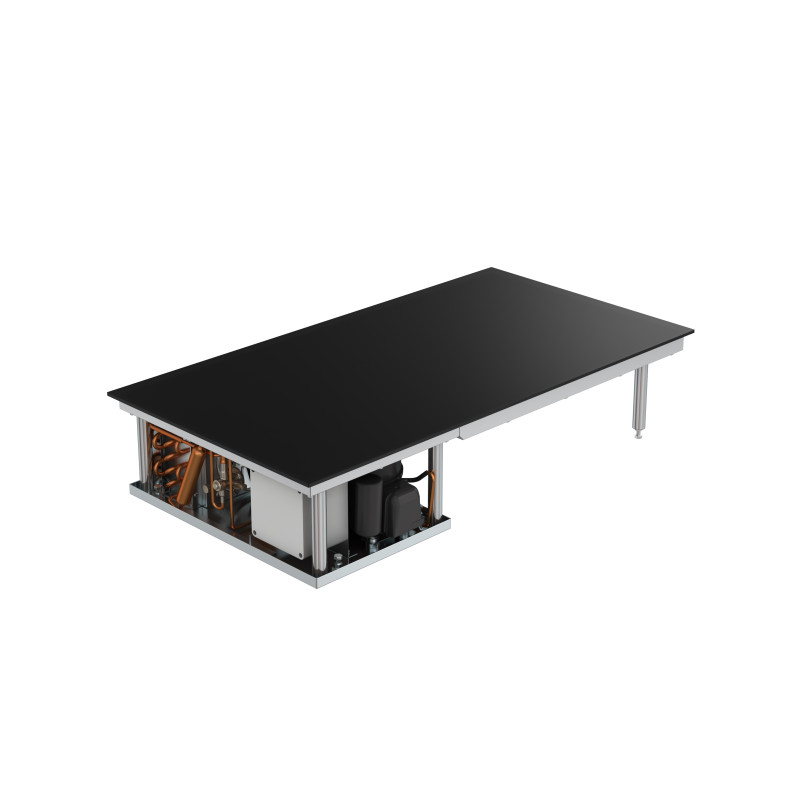

Hot and cold plate GN 2/1
KWP GLA KA GN 2/1
Product code:
8900217
Key facts
Space saving due to cold/warm function
Cost saving due to flexible use in the food serving area
Time saving due to short switching times
Future-proof due to refrigerant R290
Product information
High-quality stainless steel unit in stable, self-supporting and hygienic design. A hot and cold plate with a cover plate that ensures optimum temperature distribution due to its excellent temperature distribution is integrated in the cover. The use of a control system with digitally programmable temperatures and compressor cooling technology on the one hand and self-regulating PTC heating elements with a short heat-up phase and a constant linear temperature curve on the other hand additionally enables a fast change between cold and hot operation in the range from -5°C to +140° C.
Technical information
| Payload: | 18 kg |
| Capacity: | 1840 W |
| Cooling capacity: | 340 W |
| Supply voltage: | 220 V |
| Nominal current: | 8,0 A |
| Protection class: | Class I |
| Frequency: | 50 Hz |
| Weight: | 32 kg |
| Width: | 660 mm |
| Depth: | 530 mm |
| Height: | 202 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date29.06.2025 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date29.06.2025 -
8900217 BIM
Type3D-ModelleFile typerfa (0.82 MB)Creation Date9 Apr 2025DescriptionRFA -
8900217 DWG
TypeDWG drawingsFile typedwg (0.50 MB)Creation Date20 Aug 2024DescriptionDWG Zeichnung -
TÜV NORD CERT Sicherheitszeichen | Lagerregale (DE)
TypeCertificatesFile typepdf (0.29 MB)Creation Date24 Oct 2019 -
TÜV Nord certificate GS | Norm 25
TypeCertificatesFile typepdf (1.48 MB)Creation Date18 Oct 2019 -
Shelving range | Medical
TypeBrochures and product informationFile typepdf (12.16 MB)Creation Date15 Oct 2019DescriptionMedical -
Shelving range | Commercial Catering
TypeBrochures and product informationFile typepdf (17.66 MB)Creation Date15 Oct 2019
