Contains special equipment

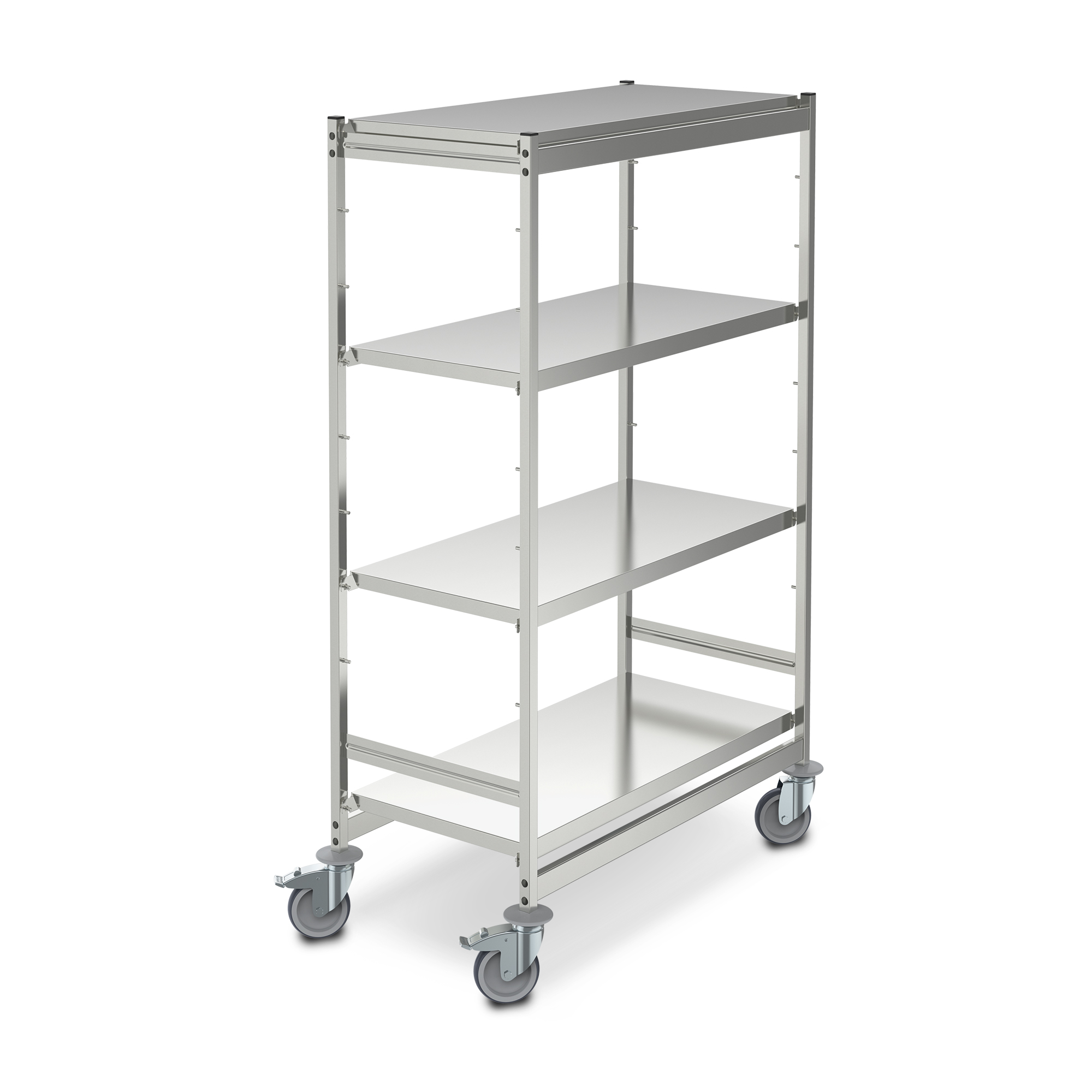

Transport shelving unit for self-assembly for shelves 1000×500 mm
RTW/Z 10-5/1652
Product code:
0123092
Displaceable shelf made of high-quality stainless steel in hygienic design as per DIN 18868-2.
Key facts
In kit form
For self-assembly
Not including shelves
Pitch: 150 mm
Delivery time: on request
Shelf uprights made from 25 × 25 mm square tubes, connected and stabilised by firmly pressed... more
Product information
Shelf uprights made from 25 × 25 mm square tubes, connected and stabilised by firmly pressed cross-running upright braces. Upper end caps made of plastic provide a hygienic finish to the shelf uprights. Firmly welded support pins ø 7 mm spaced 150 mm apart for easy hanging of shelf supports. Shelf supports designed to be hygienic and easy to clean.
Technical information
| Payload: | 200 kg |
| Weight: | 18 kg |
| Width: | 1070 mm |
| Depth: | 570 mm |
| Height: | 1652 mm |
Accessories
Norm 5 solid shelf 1000×500 mm
A-GS/N5 1000/500
P/N 0102672
Prices visible after registration. Details
Norm 25 solid shelf 1000×500 mm
A-GS/N25 1000/500
P/N 0137106
Prices visible after registration. Details
Norm 5 wired shelf 1000×500 mm
A-DR/N5 1000/500
P/N 0101772
Prices visible after registration. Details
Spare parts
Disk bumper PE ⌀95/17,5 grey 1 PU = 4 pcs
AbwRo Ø95/17,5 gr Vierkantrohr 25/25
P/N 014012051
Prices visible after registration. Details
Plastic cap for tube 25×25 1 PU = 10 pieces
P/N 012117000
Prices visible after registration. Details
