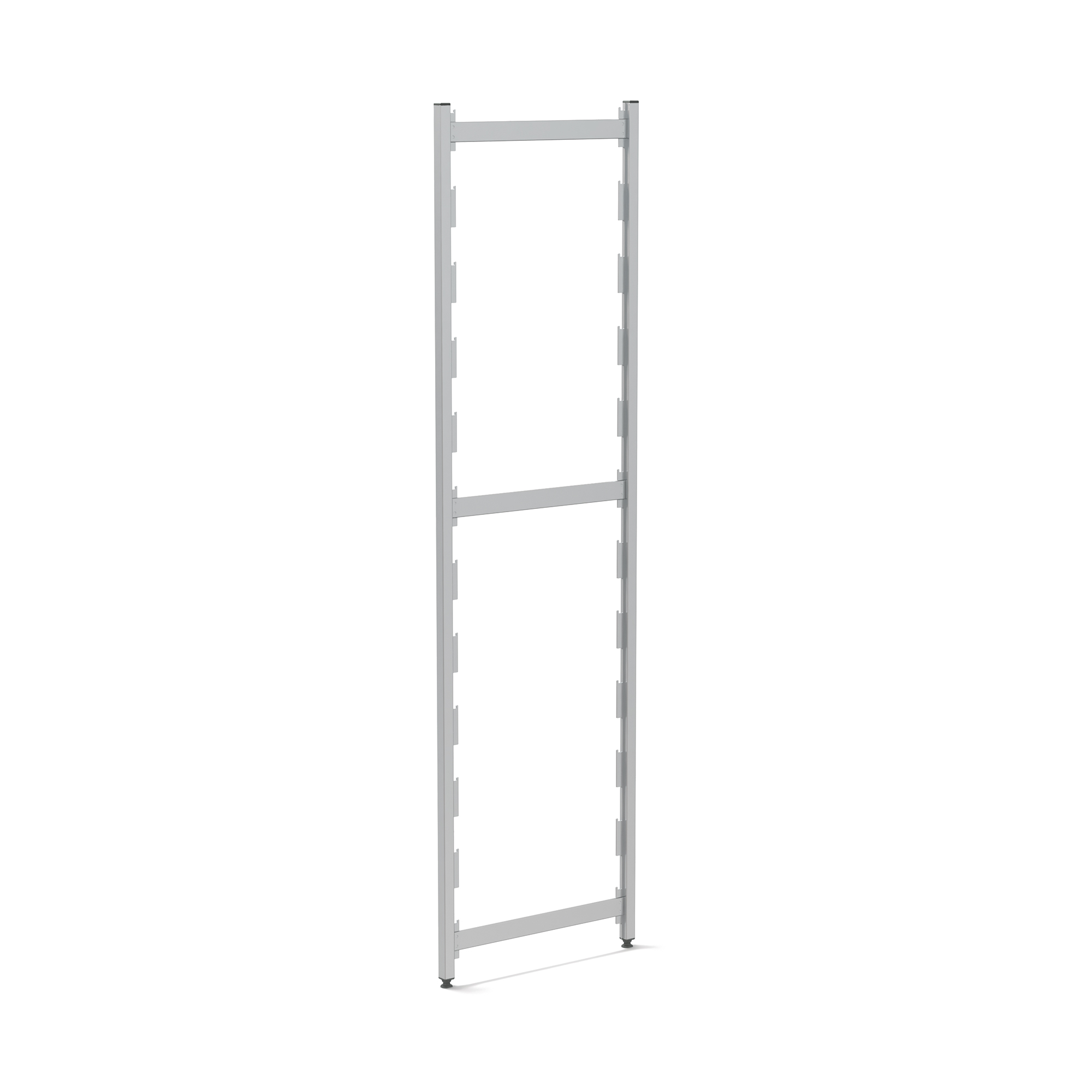

Similar to illustration
Norm 12/20 upright 1600×400 mm
RG-RS/N20/12 600kg 1600/400
Product code:
0201157
The aluminium shelving upright serves as a single component support for the Norm 12 and Norm 20 freestanding shelves. The integrated support tabs allow the shelf supports to be hooked in at regular height intervals. Two uprights with at least two supports and a cross brace form a shelf. In combination with other components, the shelving upright can bear heavy loads and is suitable for continuous use in ambient temperatures ranging from -40°C to +60°C.
Key facts
Aluminium
Pitch 150 mm
Delivery time: on request
The aluminium shelf upright serves as a sturdy single component providing lateral support for... more
Product information
The aluminium shelf upright serves as a sturdy single component providing lateral support for the Hupfer Norm 12 and Norm 20 free-standing shelves. The integrated support tabs allow for effortless hooking of the shelf boards at regular height intervals. Two uprights with at least two shelves and a cross brace form a shelf unit. In combination with other components, the shelf upright can bear heavy loads.
The modular design enables an assembly-friendly installation of the shelf upright into the free-standing shelf and allows for simple, tool-free expansion of the overall shelving unit. Uneven floors and temperatures ranging from -40°C to +60°C also pose no long-term problems.
- Modular system allows for installation-friendly fitting and easy, tool-free expansion
- High-quality workmanship with premium materials enables easy cleaning and perfect hygiene
- Robust construction guarantees high stability and load capacity
- Modular system ensures easy handling from assembly to cleaning with minimal effort
- Valuable materials ensure sustainability and long-lasting value
Technical information
| Modular dimension: | 150 mm |
| Max. section load | 600 |
| Carbon footprint (TM65 Basic Report) | 58 kgCO₂e |
| Weight: | 2 kg |
| Width: | 25 mm |
| Depth: | 1500 mm |
| Height: | 404 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date09.10.2025 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date09.10.2025 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020
Spare parts
Screw foot for norm 12/20 upright
RG-SO N12/20 SF RS
P/N 014002509
Prices visible after registration. Details
Plastic cap for tube 25×25 1 PU = 10 pieces
P/N 012117000
Prices visible after registration. Details
