Clearing trolley AMM pull-out pan for glasses
AMM
Product code:
0163056
Key facts
With pull-out shelf (200 mm)
Shelf dimensions: 1,122 × 620 mm
Max. load: 155 kg
Stainless steel
Product information

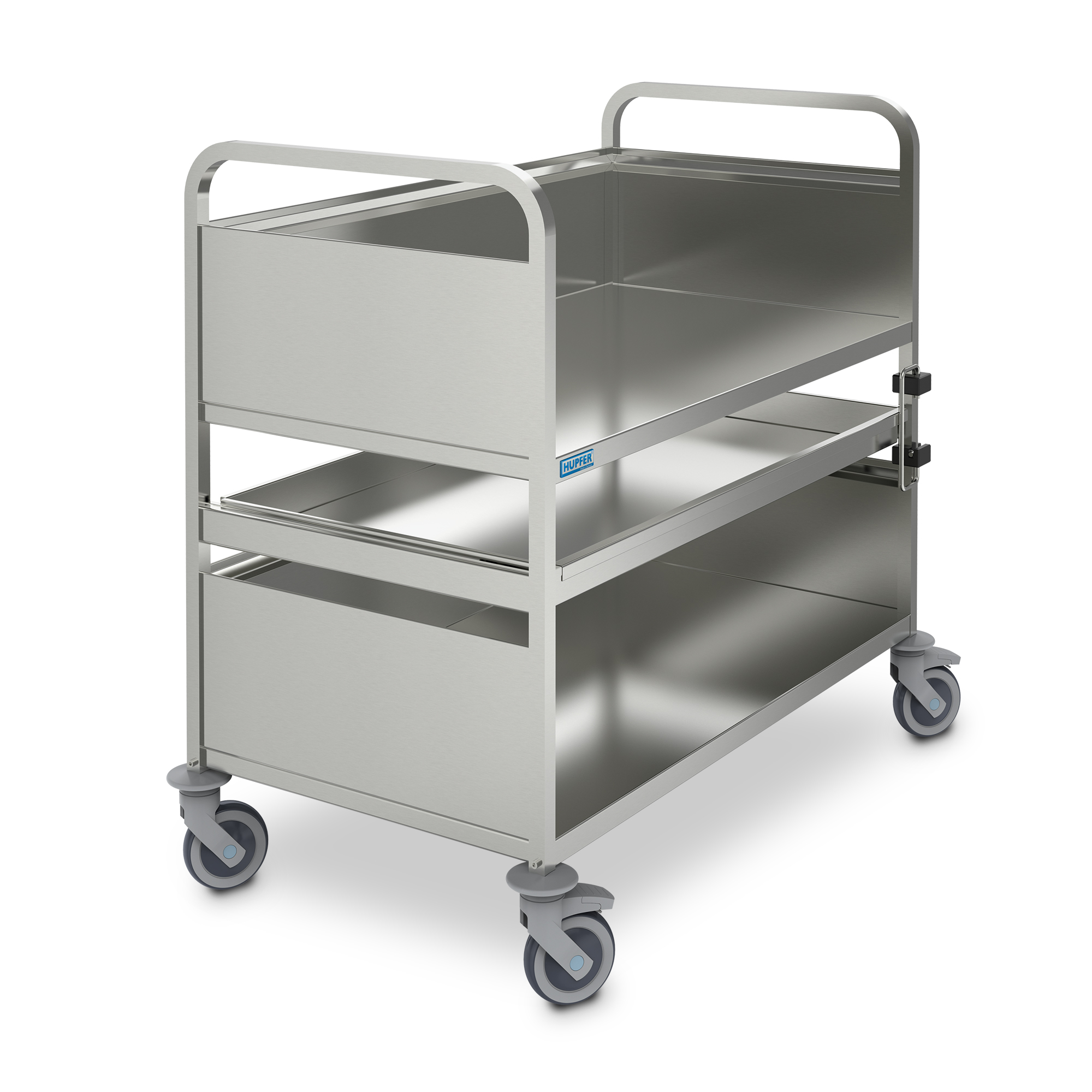

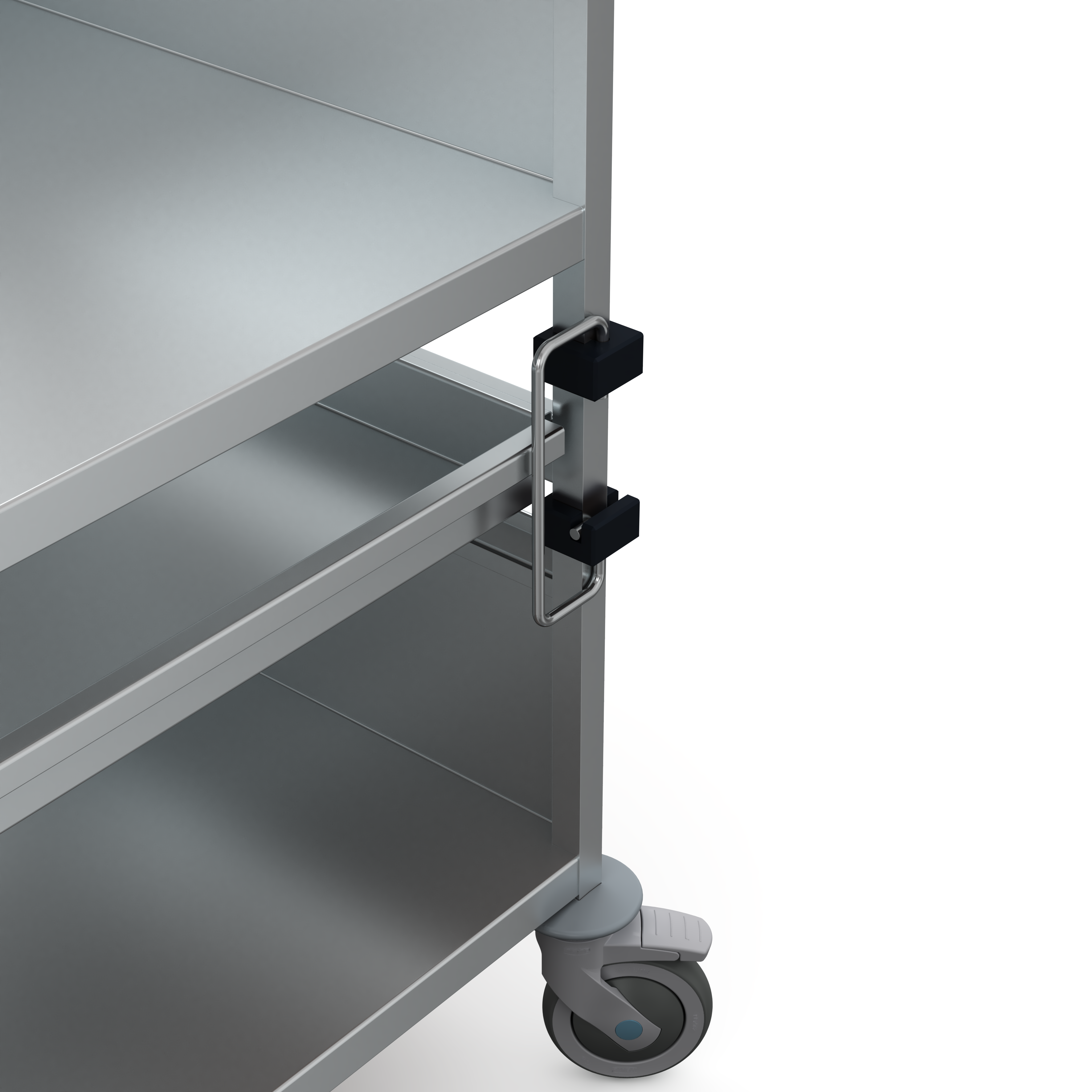

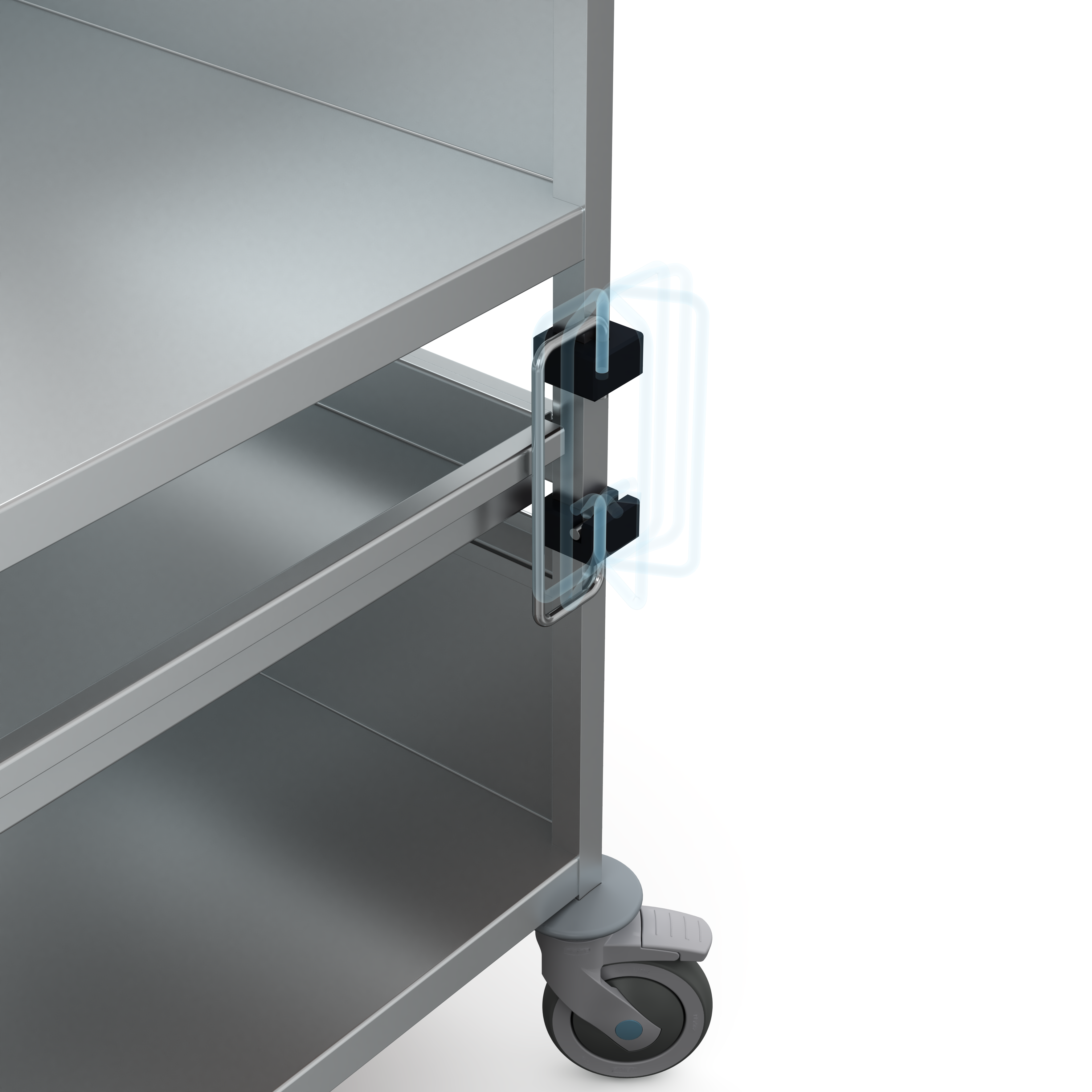

Trolley made entirely of high-quality stainless steel, self-supporting design. Square tube frame with welded shelves with safety border and sound-insulating lining on the underside. Shelves with welded, 3-sided stainless steel apron. As standard, each shelf is additionally equipped with reinforcement struts on the underside, consisting of one diagonal and two longitudinal struts that are fully welded to each other. Between the shelves, a removable stainless steel pan is inserted on telescopic full-extension runners made of stainless steel. Pan suitable for placing glasses, equipped with a front handle bar and a swivelling transport securing device. Push bars integrated on both sides into the tube frame ensure good manoeuvrability. 4 polyethylene disc bumpers serve as bumpers and protect trolley on all sides as well as building-side walls from being damaged. Trolley runs on 4 swivel casters of which 2 with total locks, ø 4.9'' (125 mm), with pin fastening.

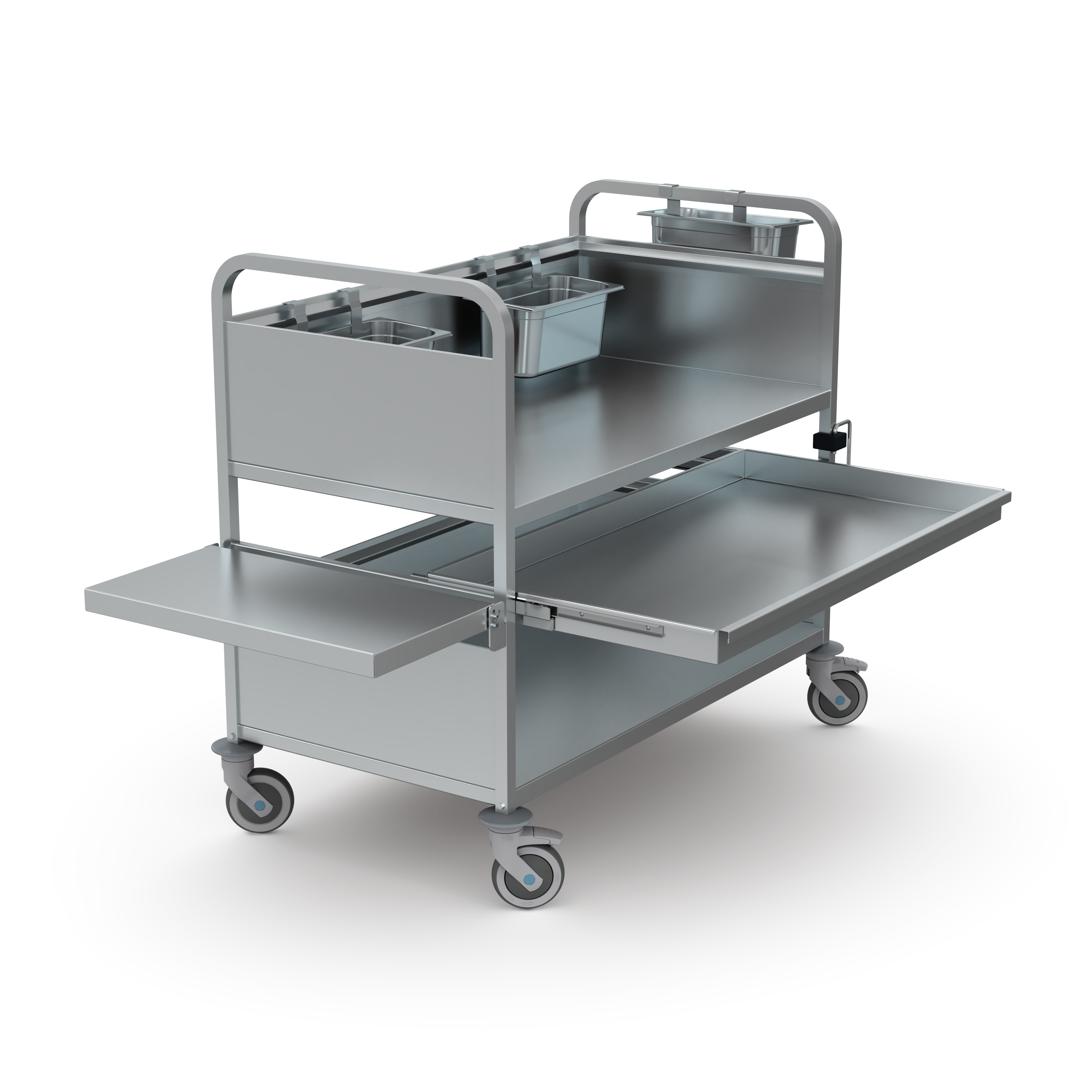

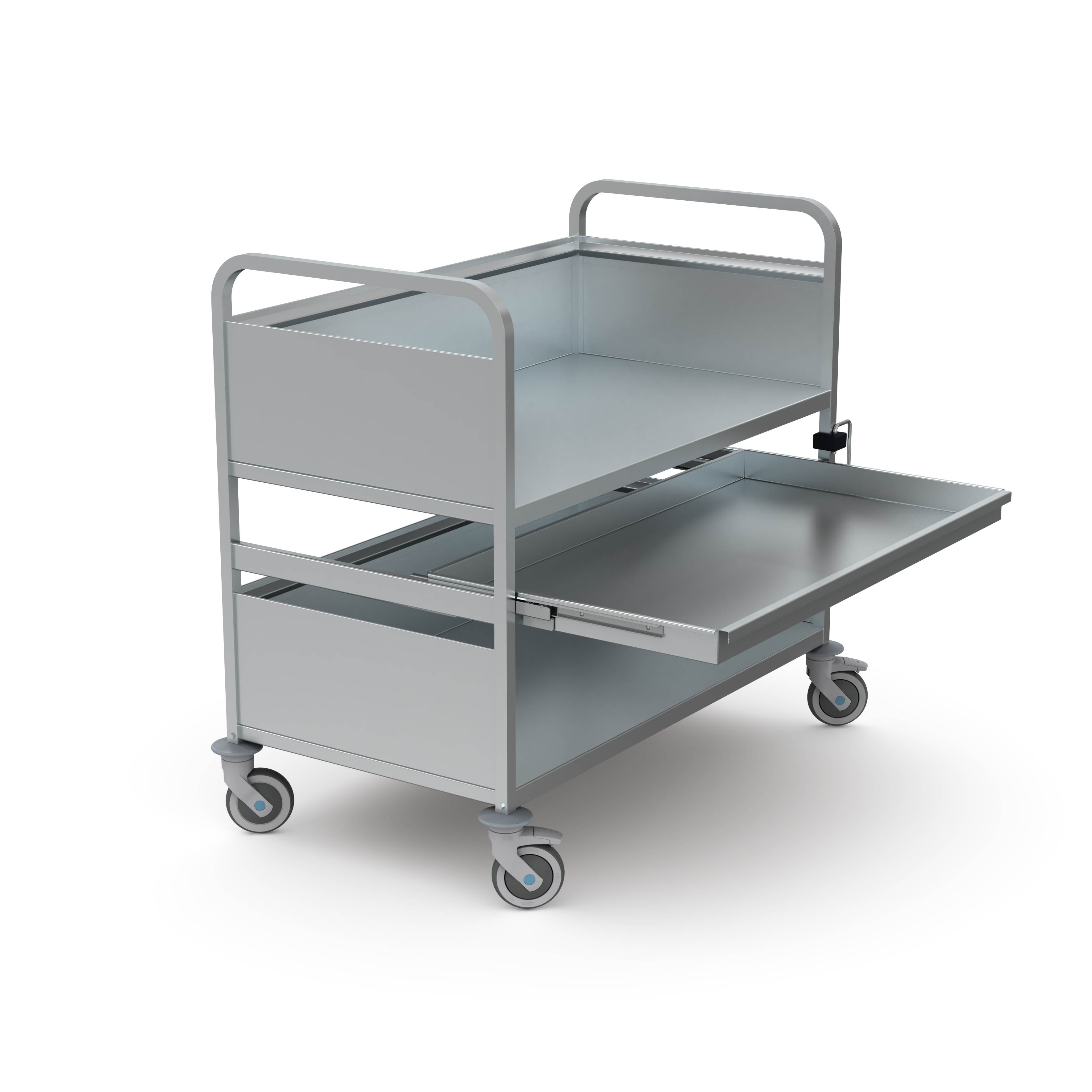

The Hupfer MultiMobile clearing trolley is a welded model delivered ready for use, and features an extendable and removable tray mounted on fully extendable telescopic guides for clearing glasses, and well as particularly high side panels as a transport guard for the upper and lower storage shelf.
Technical information
Payload: | 155 kg |
Weight: | 58 kg |
Width: | 1202 mm |
Depth: | 695 mm |
Height: | 1080 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date29.06.2025 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date29.06.2025 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
TÜV NORD CERT Sicherheitszeichen | Lagerregale (DE)
TypeCertificatesFile typepdf (0.29 MB)Creation Date24 Oct 2019 -
TÜV Nord certificate GS | Norm 5
TypeCertificatesFile typepdf (1.48 MB)Creation Date17 Oct 2019 -
Shelving range | Medical
TypeBrochures and product informationFile typepdf (12.16 MB)Creation Date15 Oct 2019DescriptionMedical -
Stainless steel shelving system | Assembly instructions
TypeOperating and assembly instructionsFile typepdf (0.22 MB)Creation Date15 Oct 2019 -
Shelving range | Commercial Catering
TypeBrochures and product informationFile typepdf (17.66 MB)Creation Date15 Oct 2019
Accessories
ANH-BEH 420/200/250 AMM
P/N 0163275
ANH-BEH GN 1/3-150 AMM
P/N 0163195
Spare parts
P/N 014012447
AbwRo Ø95/17,5 gr Vierkantrohr 25/25
P/N 014012051
P/N 014002006
LR Poly Rz3/125 mF
P/N 014000406
