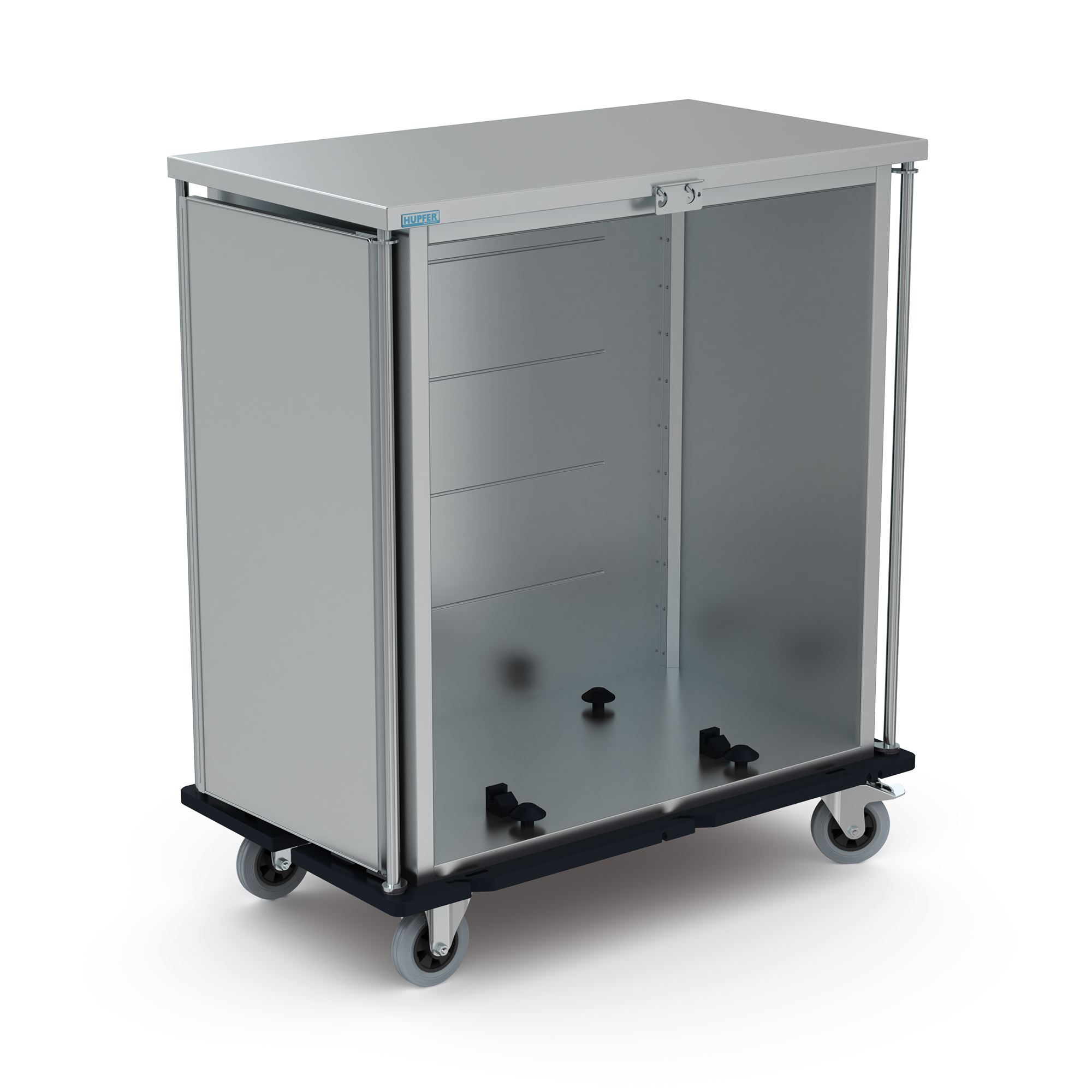

Känguruh transport cart 9 StU
PT-EH 1400/700/850-1150-F
Product code:
7504660
Key facts
Electric height adjustment 850–1,150 mm
Worktop thickness: 1.5 mm
Bevelled worktop edges: 50 mm
Stainless steel
Product information
Robust design made of square tubes, worktop folded on all sides. Underside of tabletop reinforced by profiles and fitted with a stainless steel pan, housing and protecting the hydraulic system for height adjustment. Lift cylinders with adjustment feet ensure compensation of floor unevennesses. Hydraulic, infinitely variable height adjustment system integrated into feet, for adaptation to different user body heights. Chassis with four feet for worktops up to a length of 87'' (2200 mm), with six feet for greater lengths, mobile on swivel casters with back-hole fastening, two of which with total lock. Struts in base on three sides for enhanced rigidity and optimum attaching of shelves.
The Hupfer height-adjustable and mobile packing table PT-EH 1400/700/850-1150-F allows infinite height adjustment, ensuring it provides a wide range of individual options for use, as well as options for adapting it to diverse circumstances. The digital display ensures an exact and easy-to-read indication of the set working height.
Technical information
Maximum dimension: | 1,400 × 700 mm |
Base dimensions: | 1,250 × 600 mm |
Rectangular tubing base: | 40 × 40 mm |
Height adjustment range (stroke): | 300 mm |
Worktop thickness: | 1.5 mm |
Bevelled worktop edges: | 50 mm |
Payload: | 285 kg/628 lbs |
Castors: | 4 swivel castors, 2 with lock, ⌀ 125 |
Main construction: | Open |
Capacity: | 240 W |
Supply voltage: | 230 V AC |
Nominal current: | 1.04 A |
Protection class: | IPX4 |
Frequency: | 50 Hz |
Weight: | 95 kg |
Width: | 751 mm |
Depth: | 1472 mm |
Height: | 1294 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date25.06.2025 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date25.06.2025 -
Work Table – Packing Table electrohydraulically height-adjustable AT-EH | AT-EH-F | PT-EH | PT-EH-F | Operating Instructions
TypeOperating and assembly instructionsFile typepdf (0.71 MB)Creation Date4 Dec 2020 -
7504866 DWG drawing
TypeDWG drawingsFile typedwg (0.61 MB)Creation Date15 Oct 2019Protected download for dealers and consultants: Please log in and get in touch with our contact partners with regard to activation if necessary.
Accessories
RS-MP AP VS-200 : VS-160 2LRmF 2BR
P/N 0125052
RS-MP AP ES-160 : VS-160 2LRmF 2BR
P/N 0125082
RS-MP AP ES-200 : VS-160 2LRmF 2BR
P/N 0164822
RS-MP AP ES-160 : VS-160 2LRmZF 2BR
P/N 0164825
BGN 2/3-150
P/N 0164827
Spare parts
LR St vzkt T1/160 mF
P/N 014000151
