Similar to illustration

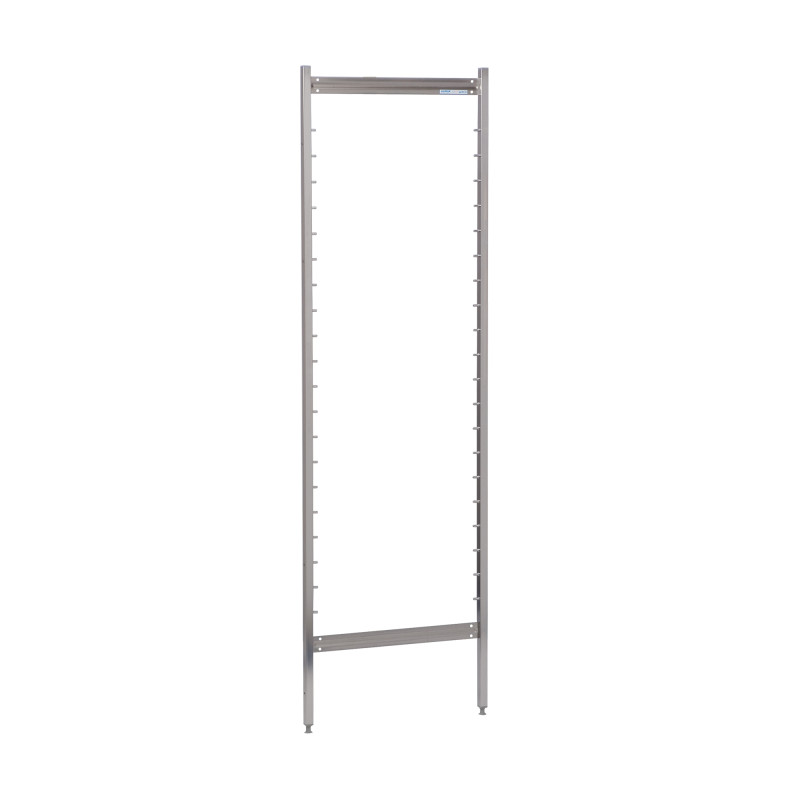

Medidul upright norm 5 2000×300 mm
RG-RS/N5 Med/HR75 600kg 2000/300
Product code:
7505113
Modular shelving system made of high-quality stainless steel 1.4301 in hygienic design as per DIN 18868-2, suitable for storage and provision of sterile supplies in sterile supply and surgery supply storerooms.
Key facts
Stainless steel
Maximum section load: 600 kg
Delivery time: on request
Uprights made of 1.0 × 1.0'' (25 × 25 mm) square tubes, connected and stabilised by press-fitted... more
Product information
Uprights made of 1.0 × 1.0'' (25 × 25 mm) square tubes, connected and stabilised by press-fitted 1.9 × 0.32'' (50 × 8 mm) upright spokes running crosswise. Upper covering caps made of plastic, height-adjustable screw feet for compensating floor unevennesses of up to 1.0'' (25 mm) as hygienic ending of upright. Welded ø 0. 28'' (7 mm) shelf bolts at distances of 5.9'' (75 mm) for easy attaching of shelves.
Technical information
| Modular dimension: | 75 mm |
| Max. section load | 600 |
| Weight: | 4 kg |
| Width: | 25 mm |
| Depth: | 300 mm |
| Height: | 1960 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date14.08.2025 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date14.08.2025 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020
Spare parts
Plastic cap for tube 25×25 1 PU = 10 pieces
P/N 012117000
Prices visible after registration. Details
Screw foot for Norm 5/25 upright
RG-SO N5/25 SF RS
P/N 014002508
Prices visible after registration. Details
