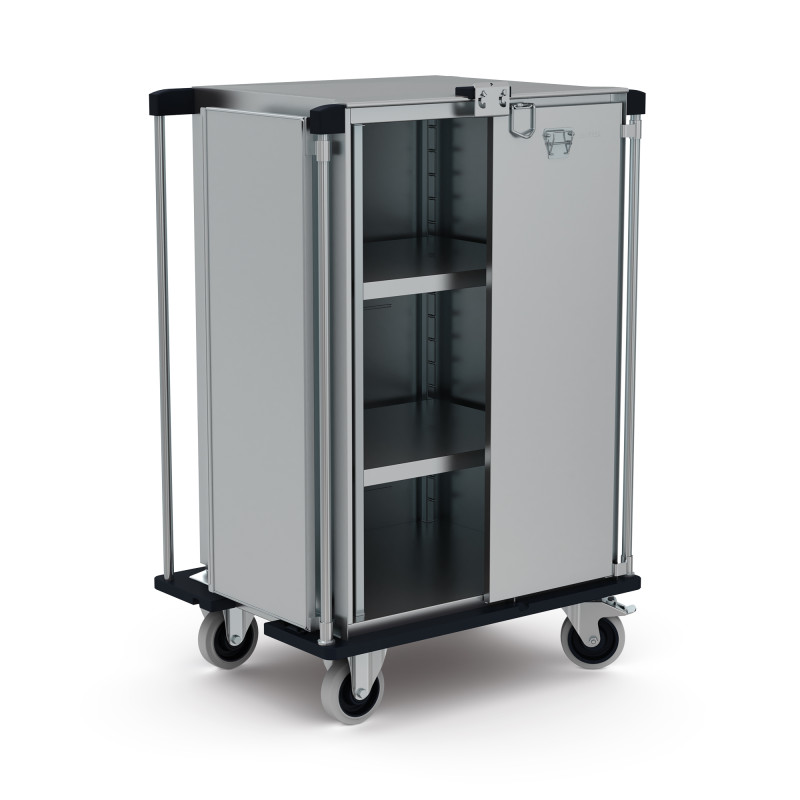

Sterile goods transport cart 6 StU
STW/VV 6StE 0965/754/1464
Product code:
7504645
Key facts
Vertical push handles
Wing doors with 270° opening angle
Circumferential door seals
Product information
Trolley made entirely of high-quality stainless steel, robust, self-supporting and hygienic design. Single-walled trolley structure closed on all sides in fully welded design, suitable for washing devices. Double-walled double-wing doors with continuous seals, can be opened by 270°, automatic closing mechanism, operation with one hand. Door lock through integrated 2-point locking. Interior with removable solid shelves that are height-adjustable within the entire interior height. Four continuous vertical push bars (2 per side) for manoeuvring even with the doors open. Bumper protective feature provided by robust, continuous bumper strip that is effective also with the doors open, with frontal recesses for connecting a towing device to the chassis. Trolley runs on 2 swivel casters with total lock, 2 fixed casters, fastened by means of screw-on plates and several screws.
Equipped with:
- fully welded design
- 2 solid shelves
- height-adjustable in 61.5 mm pitch
- paper clamp, right-hand door
- status display, left-hand door
- transport latch with sealing flap
- hinged doors with 270° opening angle
- all-round door seal
- all-round impact protection at the bottom
- Ø 160 mm castors with stainless steel housing and mounting plates
- 2 fixed castors, 2 swivel castors with total lock brake
Technical information
Modular dimension: | 61.5 mm |
Payload: | 200 kg |
Weight: | 96 kg |
Width: | 965 mm |
Depth: | 754 mm |
Height: | 1464 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date25.06.2025 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date25.06.2025 -
Gastro-norm containers and accessories
TypeBrochures and product informationFile typepdf (2.99 MB)Creation Date15 Oct 2019
Accessories
GA/3-s SW8x5 Ø8/799/430/50
P/N 0164821
RS-MP AP ES-160 : ES-160 2LRmZF 2BR
P/N 0164826
RS-MP AP ES-200 : ES-160 2LRmZF 2BR
P/N 0164828
Spare parts
LR Edelst T3/160 mF
P/N 014000157
